JZO振动电机应用广泛，但广大求购客户不知道其选型知识，打但话咨询业务人员也是了解对照表，西贝机械把表格公布给大家，选型无忧！
JZO振动电机各型号参数对照表
| 型 号 | 激振力 (KN) | 功 率 (kw) | 电 流 (A) | 振频 (r/min) | 安装尺寸（mm） | |||
| E | F | n | φd | |||||
| JZO-0.7-2 | 0.7 | 0.075 | 0.23 | 3000 | 152 | 116 | 4 | 8 |
| JZO-1.5-2 | 1.5 | 0.15 | 0.47 | 180 | 126 | 4 | 12 | |
| JZO-2.5-2 | 2.5 | 0.25 | 0.79 | 180 | 140 | 4 | 12 | |
| JZO-5-2 | 5 | 0.4 | 1.24 | 220 | 176 | 4 | 14 | |
| JZO-8-2 | 8 | 0.75 | 2.03 | 236 | 180 | 4 | 18 | |
| JZO-16-2 | 16 | 1.5 | 4.74 | 270 | 224 | 4 | 20 | |
| JZO-30-2 | 30 | 3 | 9.5 | 310 | 220 | 4 | 30 | |
| JZO-1.2-4 | 1.2 | 0.08 | 0.248 | 1500 | 152 | 116 | 4 | 8 |
| JZO-2.5-4 | 2.5 | 0.1 | 0.32 | 180 | 140 | 4 | 12 | |
| JZO-5-4 | 5 | 0.2 | 0.6 | 220 | 176 | 4 | 14 | |
| JZO-8-4 | 8 | 0.4 | 1.24 | 236 | 180 | 4 | 18 | |
| JZO-16-4 | 16 | 0.75 | 2.3 | 270 | 224 | 4 | 20 | |
| JZO-32-4 | 32 | 1.5 | 4.74 | 350 | 180 | 4 | 30 | |
| JZO-50-4 | 50 | 2.2 | 6.96 | 390 | 195 | 4 | 34 | |
| JZO-75-4 | 75 | 3.7 | 11.4 | 440 | 260 | 4 | 34 | |
| JZO-100-4 | 100 | 5.5 | 17.4 | 440 | 260 | 4 | 37 | |
| JZO-5-6 | 5 | 0.4 | 1.24 | 1000 | 220 | 176 | 4 | 14 |
| JZO-10-6 | 10 | 0.75 | 2.3 | 236 | 180 | 4 | 18 | |
| JZO-18-6 | 18 | 1.1 | 3.4 | 270 | 224 | 4 | 20 | |
| JZO-20-6 | 20 | 1.5 | 4.6 | 270 | 224 | 4 | 20 | |
| JZO-30-6 | 30 | 2.2 | 6.43 | 350 | 180 | 4 | 30 | |
| JZO-40-6 | 40 | 3 | 9.2 | 350 | 180 | 4 | 30 | |
| JZO-50-6 | 50 | 3.7 | 11.4 | 390 | 195 | 4 | 34 | |
| JZO-75-6 | 75 | 5.5 | 17.4 | 440 | 260 | 4 | 34 | |
| JZO-100-6 | 100 | 7.5 | 23.74 | 440 | 260 | 4 | 37 | |
| JZO-120-6 | 120 | 9 | 26 | 440 | 280 | 4 | 37 | |

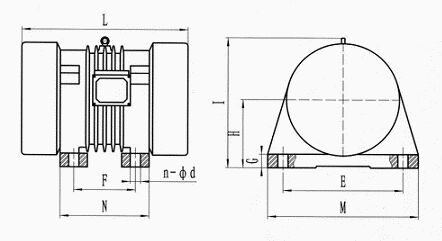

参数对照图纸
JZO振动电机各型号外形参数表
|
型 号 |
外形尺寸 |
|||||
|
G |
H |
I |
L |
M |
N |
|
|
JZO-0.7-2 |
22 |
63 |
160 |
220 |
175 |
140 |
|
JZO-1.5-2 |
22 |
75 |
178 |
280 |
214 |
150 |
|
JZO-2.5-2 |
28 |
80 |
178 |
290 |
214 |
168 |
|
JZO-5-2 |
35 |
90 |
216 |
330 |
270 |
210 |
|
JZO-8-2 |
25 |
170 |
275 |
415 |
292 |
249 |
|
JZO-16-2 |
30 |
190 |
350 |
530 |
330 |
298 |
|
JZO-30-2 |
30 |
160 |
350 |
540 |
380 |
280 |
|
JZO-1.2-4 |
22 |
63 |
160 |
260 |
170 |
140 |
|
JZO-2.5-4 |
28 |
80 |
176 |
290 |
214 |
168 |
|
JZO-5-4 |
35 |
90 |
216 |
365 |
300 |
208 |
|
JZO-8-4 |
25 |
170 |
275 |
415 |
292 |
250 |
|
JZO-16-4 |
30 |
190 |
350 |
530 |
330 |
298 |
|
JZO-32-4 |
30 |
160 |
350 |
510 |
430 |
280 |
|
JZO-50-4 |
30 |
220 |
473 |
610 |
480 |
311 |
|
JZO-75-4 |
35 |
255 |
533 |
700 |
520 |
384 |
|
JZO-100-4 |
45 |
260 |
550 |
700 |
520 |
410 |
|
JZO-5-6 |
20 |
120 |
240 |
360 |
270 |
249 |
|
JZO-10-6 |
25 |
170 |
289 |
470 |
292 |
250 |
|
JZO-18-6 |
25 |
190 |
320 |
530 |
320 |
270 |
|
JZO-20-6 |
35 |
175 |
360 |
530 |
345 |
310 |
|
JZO-30-6 |
33 |
190 |
400 |
510 |
430 |
350 |
|
JZO-40-6 |
33 |
190 |
400 |
535 |
430 |
350 |
|
JZO-50-6 |
30 |
225 |
473 |
610 |
480 |
311 |
|
JZO-75-6 |
35 |
255 |
533 |
700 |
520 |
384 |
|
JZO-100-6 |
40 |
260 |
605 |
700 |
620 |
430 |
|
JZO-120-6 |
45 |
260 |
550 |
750 |
520 |
430 |
